LIVA X² and Core support Windows 8.1 OS for a better desktop experience.
If you want to install Windows 7 on M.2 SSD, please download Windows 7 Image Builder and follow the steps on the below file to get it done.

• Download Link
  https://campaign.ecs.com.tw/support/faq_file/ECS/eSW7_v1.0.0.8.zip

• How to Use
  https://campaign.ecs.com.tw/support/faq_file/windows_7_10_Image_Builder_1008.pdf

• General FAQ
  http://www.ecs.com.tw/ECSWebSite/Support/Support_FAQ_Detail.aspx?MenuID=74&LanID=0&FAQID=136


*Please note that Windows 7 is unable to be installed into eMMC.

There's no need for extra CPUs. LIVA MINI PC adopts Intel® SoC (System-on-a-Chip), which is a system level integration that integrates all components, including CPU, into a single chip, making LIVA MINI PC extremely small and mobile.

The M.2 slot (NGFF) can only support wireless card. If you need to expand the storage, use a HDD device with USB interface.

To solve the problem, please follow below settings.

Device Manager -> Bluetooth Radio -> Power management
-> "Allow the computer to turn off the device to save power" to cancel as below screenshot.

Windows 8 “Fast Boot” function greatly shortens the time for entering BIOS Menu. Please refer to below link to disable “Fast Boot“.
  https://campaign.ecs.com.tw/support/faq_file/Fast_Startup_in_System_Settings_en.pdf





The audio combo jack supports Line up and Mic in. But due to chipset limitation, microphone is only compatible with iPhone devices.

Ubuntu OS is not officially supported by LIVA MINI PC, but the latest Ubuntu 14.04 LTS is able to being installed into LIVA MINI PC. However, due to no official Ubuntu Driver provided by wireless card vendor, it is unable to support WiFi / Bluetooth function.

Due to Ubuntu security setup, LIVA MINI PC won’t boot up without monitor plugged in under Ubuntu OS. So we suggest you to connect the monitor when first booting up, during the system power on, hot plugging of the monitor is acceptable.

For more information to solve the issue, please check on official forum of Ubuntu:

http://ubuntuforums.org/showthread.php?t=1223504

Please follow the steps on below URL to get it done.
https://campaign.ecs.com.tw/support/faq_file/how_to_install_Win8.1 X64_OS_to LIVA.pdf

It is normal that system will stay at POST screen like following screenshot for a while to initial the setup configuration when you install Win8.1. Please don’t shut down or restart system. Just keep patience to wait for 2~3 minutes. Then the Win8.1 setup will proceed further.

Please follow below guide to set up WOL function.
1. To enable WOL in BIOS, please access "Power Management Setup" in BIOS setup menu to set "Resume By PME" as [Enabled].


2. Disable "EUP Function" of "Power Management Setup" as following picture. Save & Exit CMOS Setup. (Note: It's a must to disable EUP if you intend to enable WOL function on LIVA MINI PC.).


3. It’s a must to uncheck ”Turn on fast startup” feature as following picture if your OS is Windows 8/8.1, then you can use Magic Packet to wake up your system from a subnet different system.

Please follow below steps to configure your BIOS. Then RTC Alarm should work on LIVA MINI PC
1. Disable "EUP Function" of "Power Management Setup" like following picture.
(Note: It's a must to disable EUP if you intend to enable RTC Alarm on LIVA MINI PC)


2. When setting "Resume By RTC Alarm" to [Every Day] as below screenshot.


3. Please specify the time in below items you hope to turn on the system (in this example the time is set to 00:03:00.).


4. If you set "Resume By RTC Alarm" to [Enabled] as below.


5. You must specify which day & when you like to turn on system (in this case, we set it to Day 1, 00:03:00. So system will automatically power on at 00:03:00 of the 1st day in each month.).


6.It’s a must to uncheck ”Turn on fast startup” feature as following picture if your OS is Windows 8/8.1.

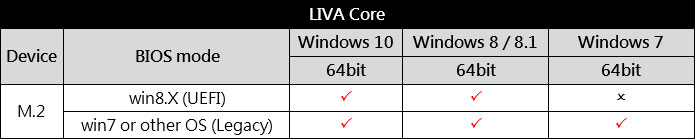

Please check following table for OS version, BIOS item and hard disk device.



l How to Use
